Sale!
HiBoost Signal Booster - MR UK

HiBoost Hi17-EW

£675.00 £600.00

100 in stock

Product price
Additional options total:
Order total:

Still Not Sure If This Product Is Right For You?

Discover your device's frequency so you can order the most optimal product.

Click here for iOS Click here for Android

Description

description

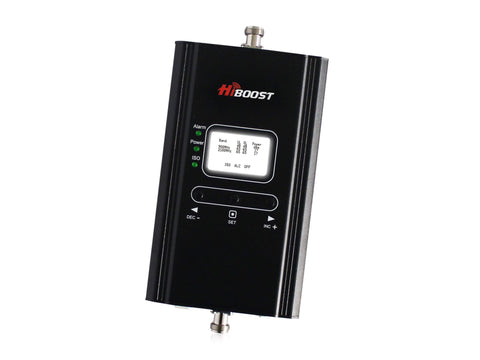

HiBoost Hi17-EW

The Hiboost Hi17-EW  home and office wide band booster has been to designed to enhance mobile signal for the end users. The booster covers a range of up to 1500 square meters indoor. This mobile booster guarantees improved mobile coverage which leads to a great communication experience, with clear calls and faster mobile data speeds.

Key Features

  • Supports EGSM 900 and WCDMA 2100MHz
  • Real time LCD display
  • Manual and automatic gain control functions
  • Self-oscillation protection
  • Compact and light
  • Good heat dissipation for long time operation
  • Wide power supply range and low power consumption

Hi17-EW_Datasheet

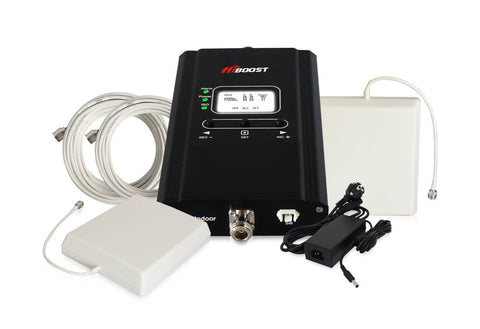

Package Includes

1-Mobile signal booster;

1-Outdoor wide band panel antenna;

2-50ft/15.2m Hiboost200 cable;

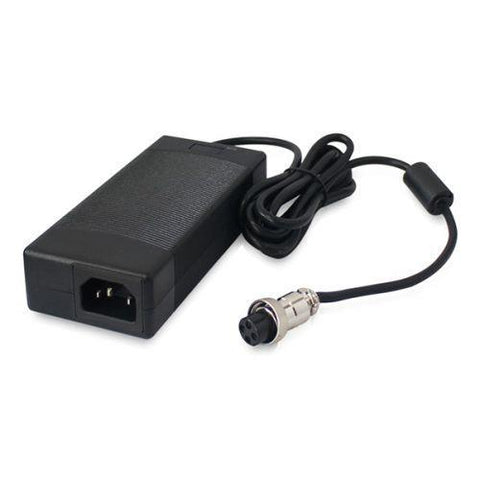

1-12V/3A, AC/DC power supply;

1-Power cord with European standard plug.

  • Mechanical Specifications
  • Electrical Specifications
Mechanical Specifications
Item Parameters
I/O Port Type N-Female
Dimension 4.7*7.8*1.3inch/120*198*34mm
Weight 1 KG
Operating Temperature -10C+55C
Storage Temperature -10C+80C
Relative Humidity 5%-95%
Barometric Pressure 55 kPA-106 kPa
Electrical Specifications tab
RF Parameter UpLink DownLink
 Frequency 900MHz

Frequency 2100MHz

880~915MHz 1920~1980MHz 925-960Mhz

2110~2170MHz

Gain 65dB 65dB
MGC (Step Attenuation) ≦ 31dB/ 1dB step
Intelligent AGC* ALC ≦ 42bB
ISO ≦ 42bB
Gain Flatness

Typical ≦5dB (p-p)

Noise Figure @ Max.System Gain Typical ≦5dB
V.S.W.R Typical ≦2
Group Delay ≦ 1us
Frequency Stability ≦ 0.01ppm
Power Supply Input AC100~240V, 50/60Hz Output DC5V/3A
Power Consumption ≦5W
Input & Ouput Impedance 50 ohm
ILCD Display Frequency, Gain, Output Power,ALC, ISO
