Mobile Booster - MR UK

HiBoost Hi23-EW

£1,350.00 £1,200.00

100 in stock

Product price
Additional options total:
Order total:

Still Not Sure If This Product Is Right For You?

Discover your device's frequency so you can order the most optimal product.

Click here for iOS Click here for Android

Description

description

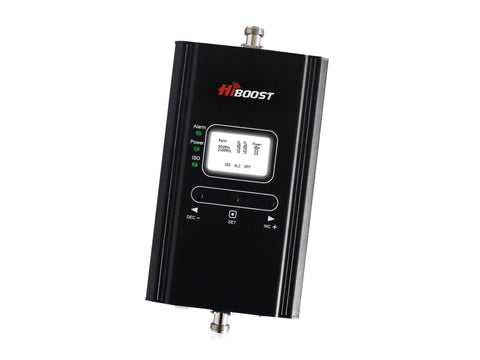

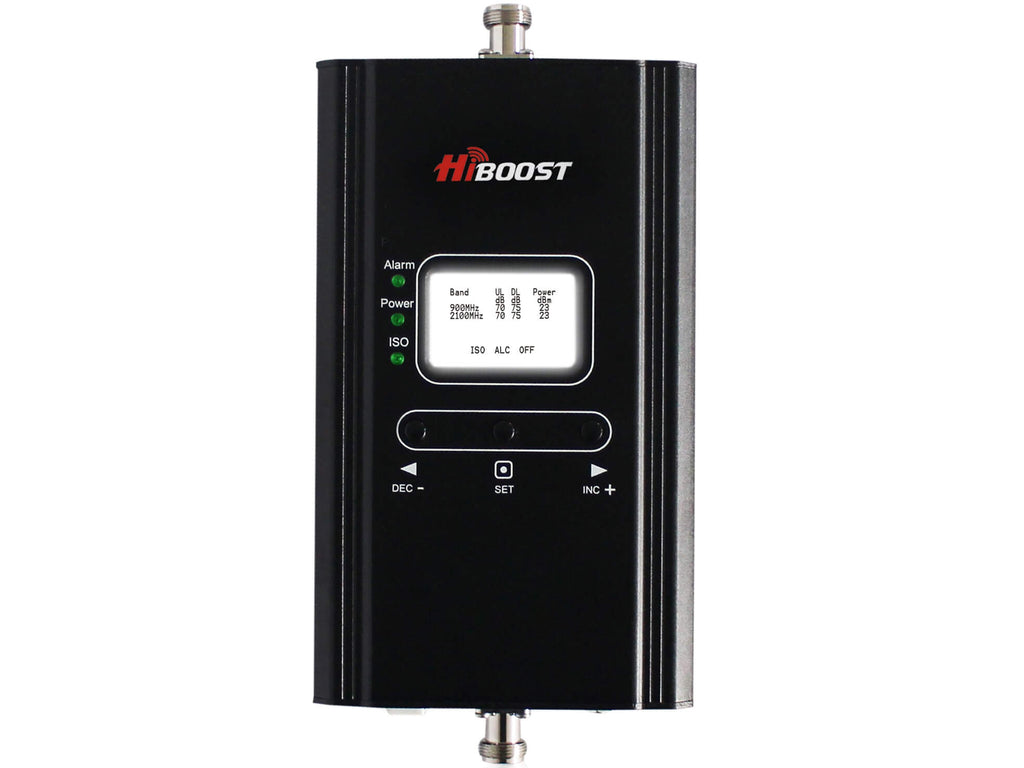

 HiBoost Hi23-EW

The Hiboost Hi23-EW wide band booster has been to designed to enhance mobile signal for the end users. The booster covers a range of up to 5500 square meters indoor. This mobile booster guarantees improved mobile coverage which leads to a great communication experience, with clear calls and faster mobile data speeds.

Key Features

  • Supports EGSM 900 and WCDMA 2100MHz
  • LCD display that shows in real time
  • Manual and automatic gain control functions
  • Self-oscillation protection
  • Compact and light
  • Good heat dissipation for long time operation
  • Wide power supply range and low power consumption

Hi23-EW_Datasheet

package includes

x Dual band mobile signal booster

x Outdoor wide band panel antenna

x 50ft (15.2m) low-loss HiBoost300 Cable

1 x 12V/3A, AC/DC power supply

  • Mechanical Specifications
  • Electrical Specifications
Mechanical Specifications
Item Parameters
I/O Port Type N-Female
Dimension 4.7*7.8*1.3 inch/120*198*34mm
Weight ≦2.2 lbs/1KG
Operating Temperature -10C+55C
Storage Temperature -10C+80C
Relative Humidity 5%-95%
Barometric Pressure 55 kPA-106 kPa
Electrical Specifications tab
RF Parameter UpLink DownLink
 Frequency 900MHz

Frequency 2100MHz

880~915MHz 1920~1980MHz 925-960Mhz

2110~2170MHz

Gain 65dB 65dB
MGC (Step Attenuation) ≦ 31dB/ 1dB step
Intelligent AGC* ALC ≦ 42bB
ISO ≦ 42bB
Gain Flatness

Typical ≦5dB (p-p)

Noise Figure @ Max.System Gain Typical ≦5dB
V.S.W.R Typical ≦2
Group Delay ≦ 1us
Frequency Stability ≦ 0.01ppm
Power Supply Input AC100~240V, 50/60 Hz, Output DC12V / 3A
Power Consumption ≤10W
Input & Output Impedance 50 ohm
LCD Display Frequency, Gain, Output Power, ALC, ISO
