The iBoost Dual Band 900/1800 is an upgraded version of our best selling original Mini Personal Signal Booster. The unit has a larger coverage area and supports more users. Just like the original version, the iBoost Dual Band 900/1800 is compatible with all UK and European voice and text networks and 2G data networks (EDGE, GPRS, etc). This improved version, covers an area of up to 250m2 and supports at least 15 users simultaneously. All components needed for an easy installation are included. The Repeater can be used in private or commercial objects (flats, houses, offices, production facilities, etc.) and can be operated continuously or controlled with a time switch (time switch not included). The unit is designed to amplify all mobile frequency bands and does not require any kind of programming.

The installation of the repeater system should be completed within minutes. (depending on situation) The repeater will be shipped from our UK warehouse, please allow 3-5 business days for shipping.

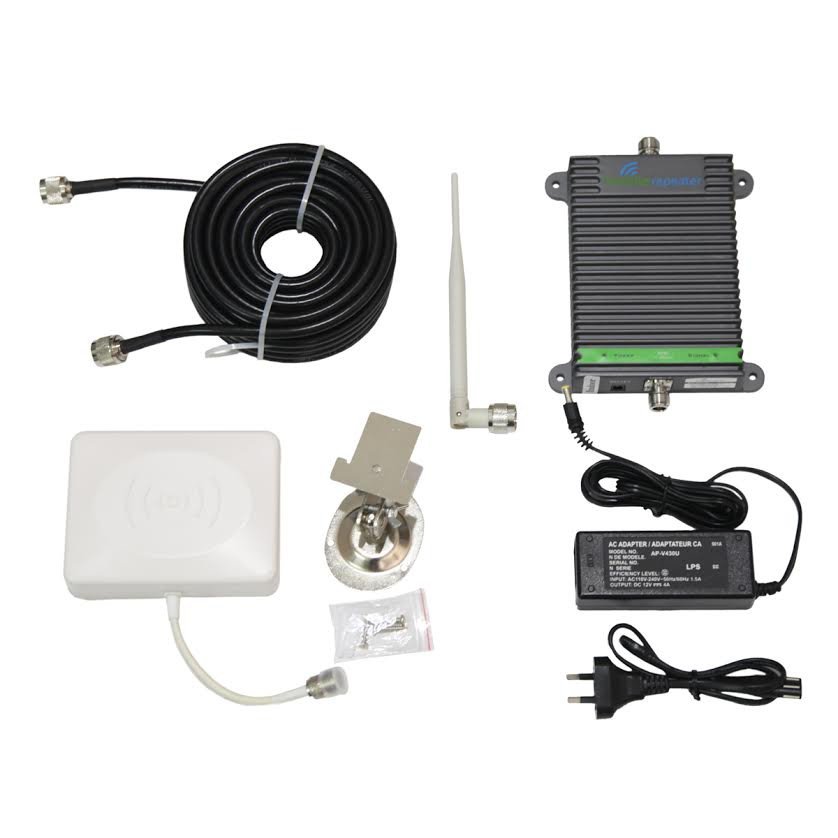

Our iBoost Dual Band 900/1800 is a Repeater kit used to amplify mobile phone signals and has been tested with Vodafone, Orange, T-Mobile, EE and O2 voice and text mobile service. The following components are included - Repeater unit, external antenna, internal antenna and coax antenna cable. The repeater unit is a grey component equipped with two ports to connect the external and internal antennas. Both ports are marked accordingly. The white, square external antenna should be placed on the roof or exterior wall of the building. A bracket for solid placement is included. The external antenna can be connected to the repeater unit, using the coax antenna cable (Different lengths available) The internal antenna can be connected straight to the repeater units indoor port.

Included components:

• iBoost Dual Band Mobile Booster unit
• External antenna / Bracket
• Internal antenna
• Coax antenna cable (50Ω, 10m)
• Power supply (230V/110V - 12V DC)
• Installation manual

TECHNICAL SPECIFICATIONS
Gain ( dB) Uplink Gp≥55, Downlink Gp≥60
Pass band ripple ≤5dB
Guard band rejection (BW-60dB)≤42MHz, (BW-70dB)≤45MHz
I/O impedance 50Ω/N connector
I/O return loss ≤-8dB
Export power (Po) ≥23dBm
Intermodulation Attenuation: ≤-40dBc (Po=13dBm)
Transmission Delay ≤0.5μs
Ambient temperature -10℃～50℃
Power supply AC110～220V + - 10%
Connector Mode N/K for both in-out antenna socket
Diamension 235 x 178 x 25 mm
