MR Dual Band Panel

Product Ref: MRE021

Availibility: In Stock

Mobile Repeater

£45.00   £55.00
Quick Overview

Details

  • Mobile Repeater UK Datasheets - Booster Information

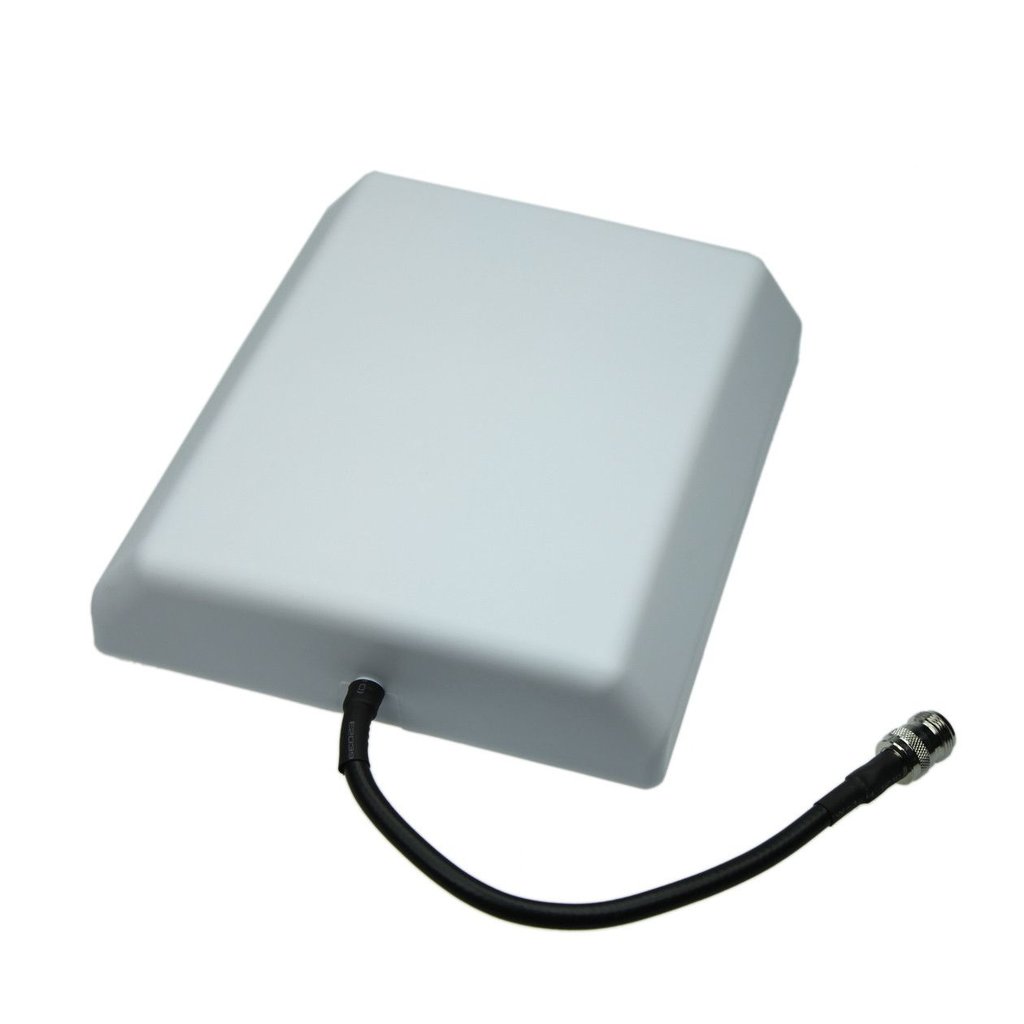

The MR Dual Band directional panel antenna can be used as either an outdoor direction aerial or for indoor coverage. This is the same style aerial supplied with the MRMini and MRPowerBoost model repeater kits. The antenna is housed in an all-weather casing. The high gain directional panel is ideal for wall-mount applications. This antenna works the GSM 900, 1800MHz and 3G 2100 network frequencies (UK and European phone networks) and is compatible with most mobile booster kits.

    Indoor our outdoor use
    Compatible with GSM 900/1800/3G Networks
    Simple wall-mount with bracket
    Money Back Guarantee

The directional panel antenna can be used for two applications. It can be easily mounted to a wall or chimney face, pointed in the direction of the closest mobile mast for maximum signal capture. Alternatively the panel can be used as an indoor coverage antenna when connected to the output signal of your repeater. Since the panel antenn is directional it has a signal different signal pattern than a standard omni-directional aerial that would be supplied with the basic repeater kits. This antenna is suited to indoor applications where you located the panel at one end of a coverage for a horizontal broadcast pattern inside the building.


Technical Specifications:


Frequency

EURO/ASIA GSM 900/1800/3G Bands
(890 - 960 MHz )/(1710 - 2100 MHz)

Gain 7/9 dBi
VSWR 1:8:1/1.5:1 Max
Impedance 50Ω
Termination SMA (F)
Horizontal Beamwidth 80°
Vertical Beamwidth 70°
Size 255x195x55
Weight 656gram
