MR Mini GSM 1800 2012

The MR Mini GSM 1800 repeater kit captures and boosts a weak mobile signal through a high gain antenna and amplifier and boosts coverage for areas up to 250 square meters. The MR Mini GSM 1800 works on the 1800MHz frequency band. Our MR Mini GSM 1800 will give you guaranteed coverage for your home, office, cabin, warehouse or facility. This repeater kit comes complete with everything you need to increase signal strength and stop dropped calls. This product is simple to install, comes with 100% free technical support and is posted from the UK.

• GSM 1800 Networks
• 60 dB gain
• Coverage up to 250 sq m
• High gain signal antenna
• Supports 10 simultaneous users
• Works with most UK and European providers
• Money Back Guarantee

The MR Mini GSM 1800 repeater kit is designed for medium sized coverage areas up to 250 square meters. The MR Mini GSM 1800 kit has been sucessfully and easily installed in all types of application areas including homes, basements, offices, warehouses and larger buildings. The installation process involves placement of the external signal or donor antenna which captures the signal and provides input to the repeater amplifier. The 60dB gain GSM amplifier increases the signal strength before re-broadcasting a clear and powerful signal inside. Boost bars, extend range and stop dropped calls today!

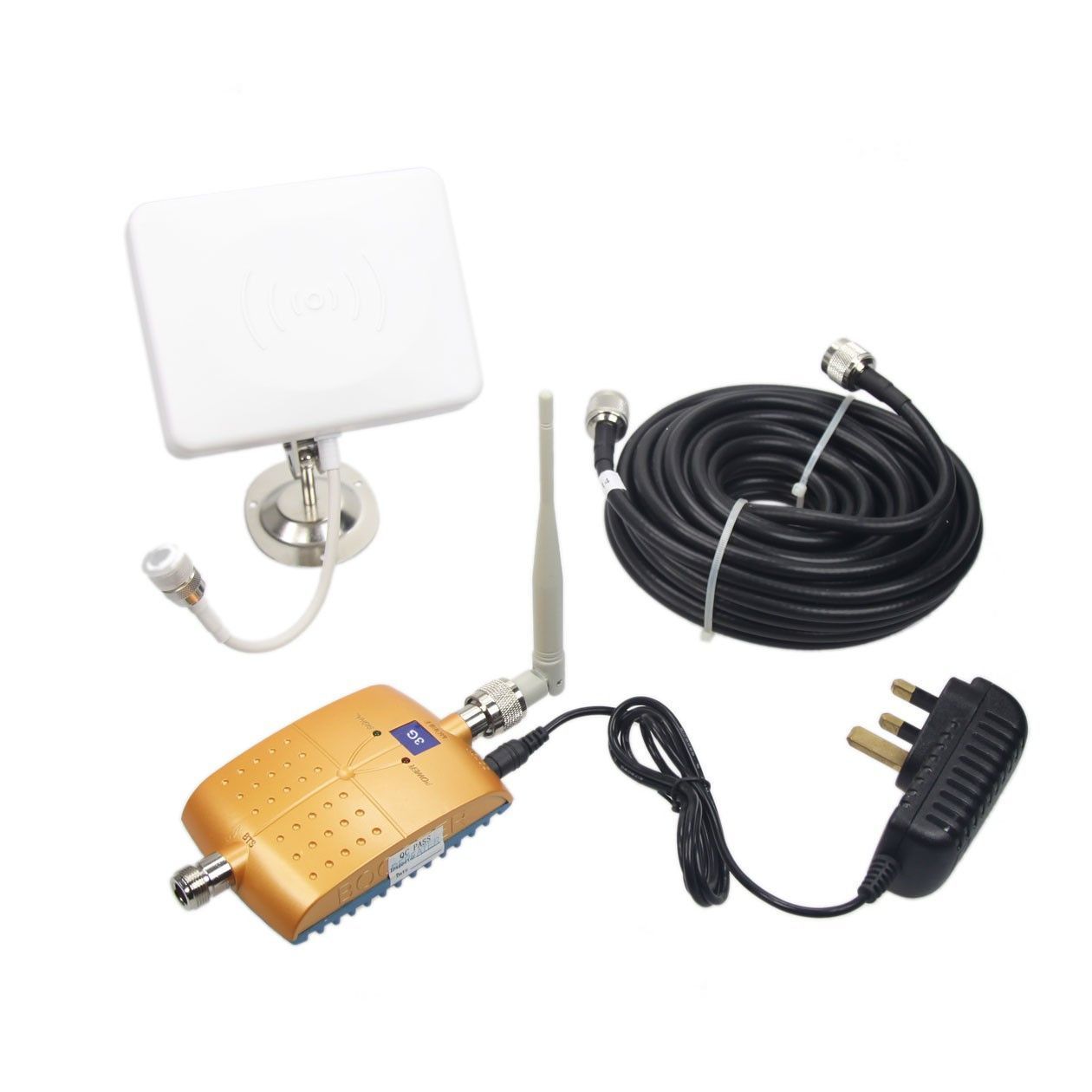

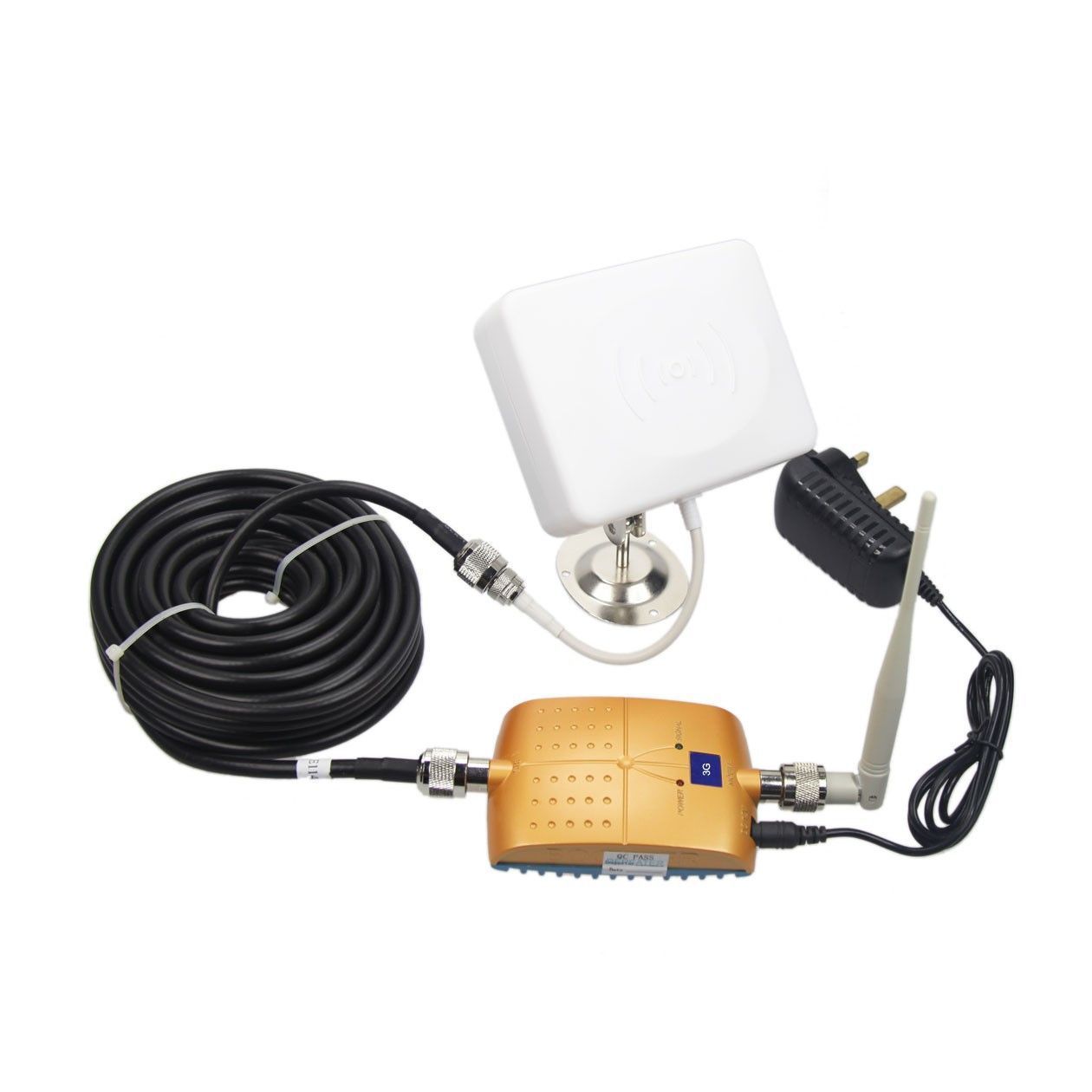

The MR Mini GSM 1800 repeater kit comes complete with

• MR Mini GSM 1800 60dB GSM repeater/amplifier
• High gain external dual band signal antenna
• 10 m coaxial cable for connecting donor antenna
• AC/DC main power supply
• Installation manual and parts

For larger coverage areas or custom solutions please Click Here. If you would like more information or if you would like to purchase this model please feel free to Contact Us.
Technical Specifications

Gain ( dB) Uplink Gp≥55, Downlink Gp≥60
Pass band ripple ≤5dB
Guard band rejection (BW-60dB)≤42MHz, (BW-70dB)≤45MHz
I/O impedance 50Ω/N connector
I/O return loss ≤-8dB
Export power (Po) ≥23dBm
Intermodulation Attenuation: ≤-40dBc (Po=13dBm)
Transmission Delay ≤0.5μs
Ambient temperature -10℃～50℃
Power supply AC110～220V + - 10%
Connector Mode N/K for both in-out antenna socket
Diamension 235 x 178 x 25 mm
