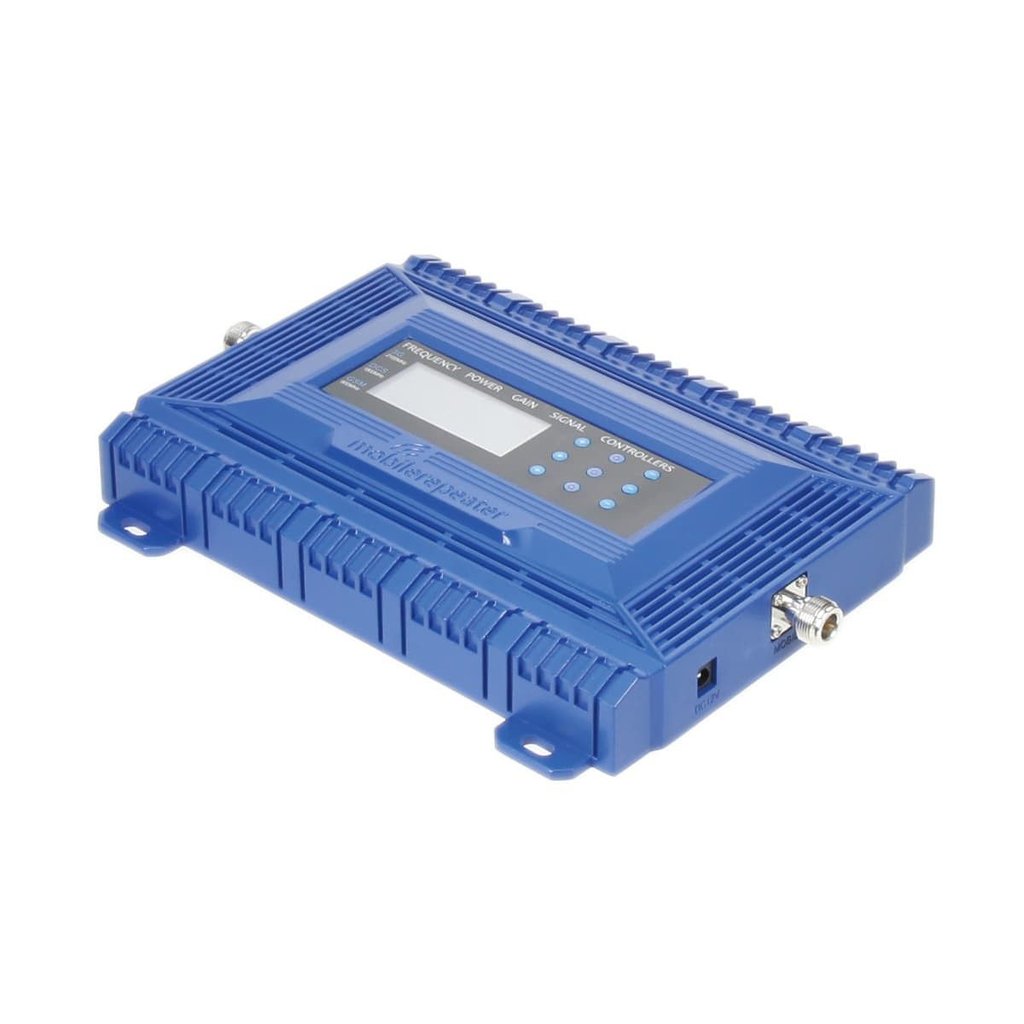

Signal Booster - All Network Repeater

Designed to boost the voice calls and data and compatible with all UK mobile voice, text and 3G data, (including Vodafone, O2, EE, and 3 Network) as well as EE 4G data

The latest digital model was launched in June 2016. The Tri-Band is the most popular repeater on the market. This repeater kit is compatible with absolutely all GSM/DCS and 3G networks and has been tested on and proven effective in boosting Vodafone, O2, EE and Three Network for voice and 3G. This booster is also compatible with the new EE high speed 4G data networks. Effectively this booster provides a strong and reliable signal and eliminates poor reception. The repeater comes with everything you need, is simple to install, comes with 100% free technical support and is available from our depot in the UK.

• TRI-Band GSM900 / DCS 1800 and 3G
• 60dB gain
• Coverage up to 250 sq m
• Simple Installation
• Supports 20 simultaneous users
• All UK GSM voice and all 3G network & EE 4G networks
• Money Back Guarantee

Designed for universal mobile coverage. The Tri-Band booster enhances signal strength to your mobile phone or broadband. All that is required is an external signal. Whatever is outside can be improved and boosted around your home.

Installation of the MR Tri-Band repeater is simple and takes about 15 minutes. Just mount the external aerial antenna and connect to the repeater input port, screw on the whip aerial and power up.

For best performance the external aerial should be mounted in the location with the strongest signal strength. The effective coverage area of the unit depends on the input signal provided from this antenna. The MR Tri-Band repeater comes complete with:

• MR Tri-Band Repeater Amplifier
• External Tri-Band signal aerial
• Indoor high gain tri-band amplifier panel antenna
• 10 m coax to connect to repeater
• AC/DC power supply
• Easy to follow installation manual

If you have any questions about this or other Mobile Repeater products please feel free to Contact Us. For technical specifications on this model please see below.

Technical Specifications

Gain ( dB) Uplink Gp≥55, Downlink Gp≥60
Pass band ripple ≤5dB
Guard band rejection (BW-60dB)≤42MHz, (BW-70dB)≤45MHz
I/O impedance 50Ω/N connector
I/O return loss ≤-8dB
Export power (Po) ≥23dBm
Intermodulation Attenuation: ≤-40dBc (Po=13dBm)
Transmission Delay ≤0.5μs
Ambient temperature -10℃～50℃
Power supply AC110～220V + - 10%
Connector Mode N/K for both in-out antenna socket
Diamension 235 x 178 x 25 mm
